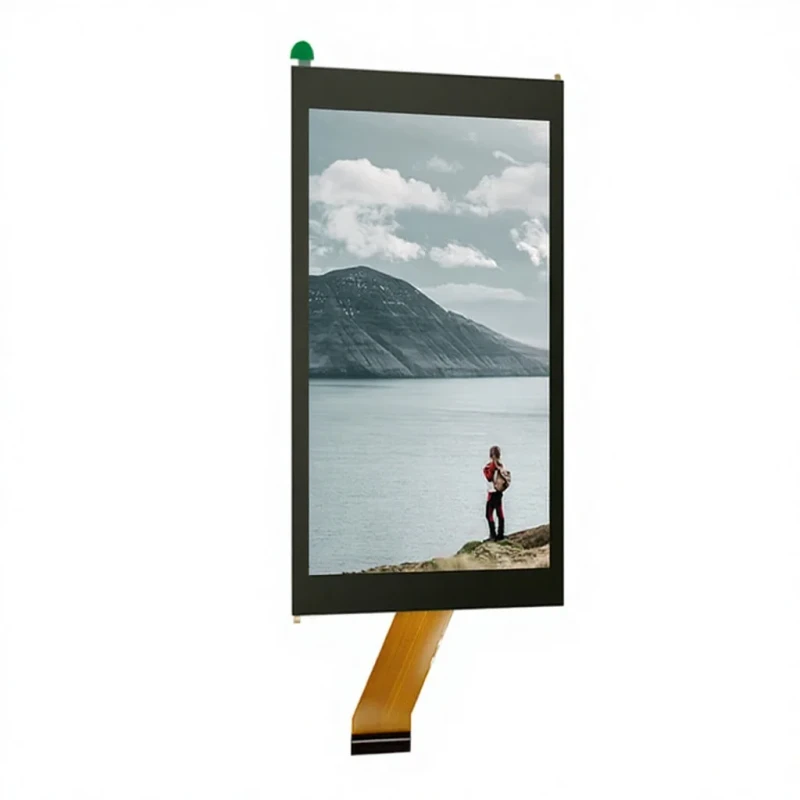

1280x800 1000nits LCD Screen Display LVDS Interface 10 Inch Touch Screen Display TFT Display Module
Resolution & Pixel Pitch: Various pixel pitches available (e.g., P1.25, P2.5, P4) to ensure high-definition displays for different a
Size & Shape: Customizable screen sizes and shapes, including standard rectangular, curved, and irregul
Brightness & Protection Level: Adjustable brightness (1000 to 5000 nits) and protection levels (e.g., IP65 waterproof) tailored for indoor or outdoor u
Control System & Features: Customizable control systems with options for multiple playback modes, interactive touch functionality, a
Introduction
| Type | TFT | Display Size | 10.1" |
| Supplier Type | OEM/ODM | Resolution | 1280*800 |
| Outline Dimension (mm) | 229.46*149.1*4.70 | Active Area (mm) | 216.96*135.6 |
| Viewing Angle | All | Brightness | 1000nits |
| Interface | LVDS | Backlight | 6*6LED |
| PIN No. | 40 | Operating Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
