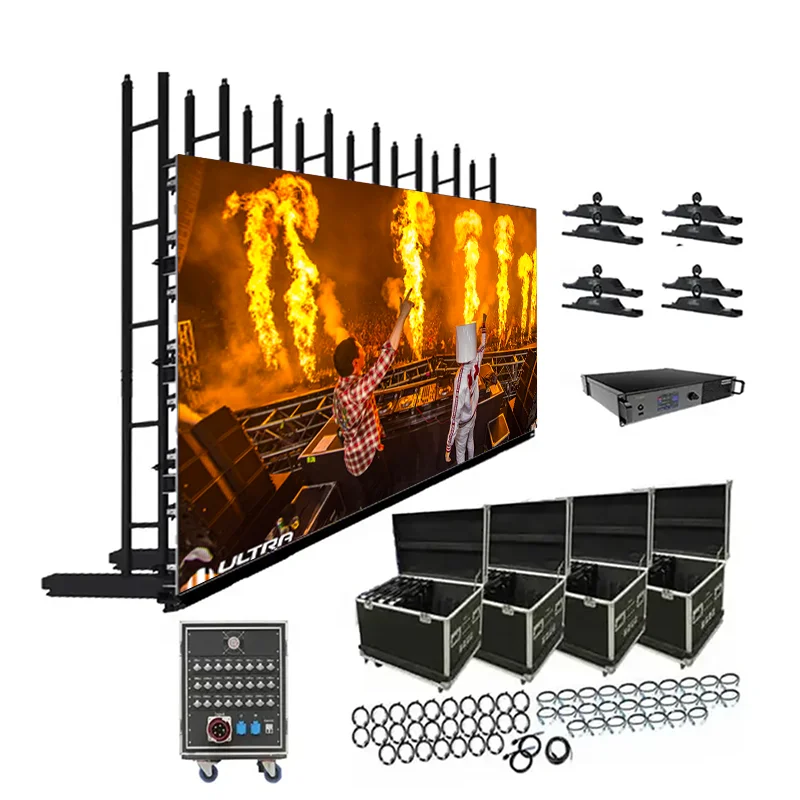

12x10 LED Wall P2.604 Rental Indoor LED Screen High Contrast Ratio 2.6mm 3840Hz 170 Viewing Angle Video Panel HDR10+ IP43
Resolution & Pixel Pitch: Various pixel pitches available (e.g., P1.25, P2.5, P4) to ensure high-definition displays for different a
Size & Shape: Customizable screen sizes and shapes, including standard rectangular, curved, and irregul
Brightness & Protection Level: Adjustable brightness (1000 to 5000 nits) and protection levels (e.g., IP65 waterproof) tailored for indoor or outdoor u
Control System & Features: Customizable control systems with options for multiple playback modes, interactive touch functionality, a
Introduction
| 应用范围 | 室内 | 像素 | 2.6mm |
| 亮度 | 500cd, 1000cd, 1200cd | 防水 | IP20 |
| 刷新率 | 3840Hz | 分辨率 | Customized |
| HDR支持 | 无HDR, HDR10+ | 视角 | 170 °, 160 ° |
| 色深 | 16位 | 色域 | Adobe RGB 98%, DCI-P3 95%, NTSC 110%, Rec.2020 85%, sRGB 95% |
| 色温 | 6500K, 自动调谐模式 | 对比度 | 10000:1, 5000:1 |
| 工作温度 | -40 ℃ ~ 70 ℃ | 功耗 | ≤ 30w/㎡ |
| 远程设备管理 | 实时状态监控 | 内容管理系统 | 内置CMS, 多语言支持, 内容排期 |
| 保修 | 3年 | 安装方式 | 壁挂式安装, 天花板安装, 落地支架, 自定义安装 |
| 类型 | LED | 电源 | 100-240V AC |
| 用途 | 广告发布, 零售店, 购物商城, 欢迎显示, 自助服务业务, 展厅, Airport, 地铁, 餐厅酒店用品, 教育类型 | 颜色 | Full color |
| 阳光下可视 | 不 | 可用介质 | 数据表, 照片, EDA/CAD 模型。 |
| 产地 | Guangdong, China | 型号 | P2.604 Rental LED Display |
| 品牌名称 | NO Brand | 像素密度 | 147,456 pixels/m2 |
| Usage | Indoor rental LED display | LED chip | Epistar SMD2121 |
| LED encapsulation | Xinda, Nationstar, Kinglight, Maike, KN-light, Anplight, MLS etc | Product name | P2.604 LED screen |
| Cabinet size | 500x1000 mm | Cabinet resolution | 192x384 pixels |
| Cabinet material | Die casting aluminum | IP Protection | IP43 |
| Close viewing distance | 2.7 meter |
