7.0 Inch 1024*600 TFT LCD Display Module with Capacitive Touch and High Brightness Screen
Resolution & Pixel Pitch: Various pixel pitches available (e.g., P1.25, P2.5, P4) to ensure high-definition displays for different a
Size & Shape: Customizable screen sizes and shapes, including standard rectangular, curved, and irregul
Brightness & Protection Level: Adjustable brightness (1000 to 5000 nits) and protection levels (e.g., IP65 waterproof) tailored for indoor or outdoor u

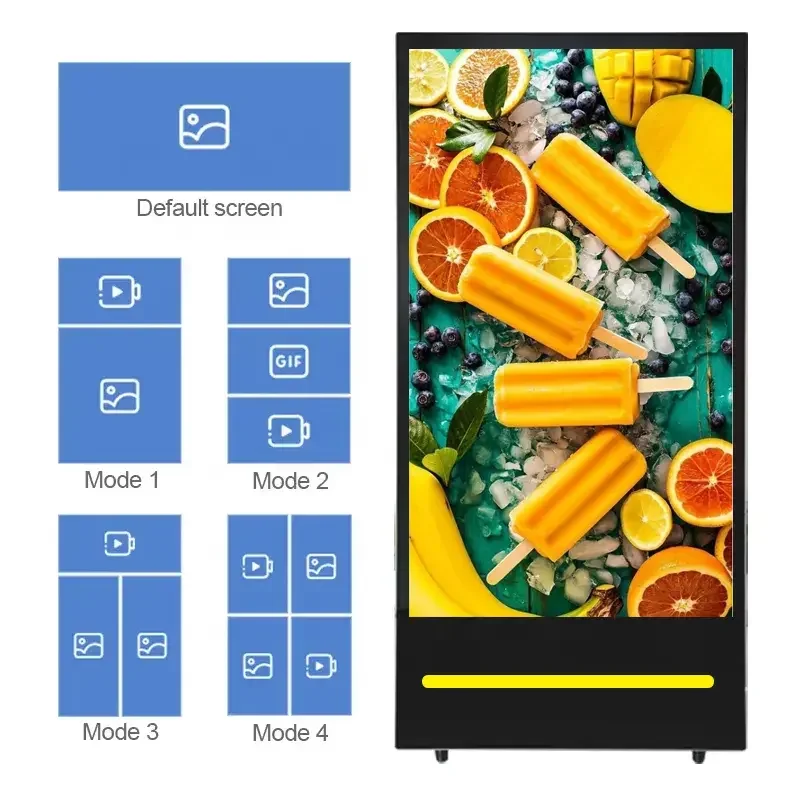

Control System & Features: Customizable control systems with options for multiple playback modes, interactive touch functionality, a
Introduction
| Type | TFT dispaly screen | Resolution | 1024*600 |
| Display Type | IPS | Backlight Type | LED Display Screen |
| Mounting Type | Connector | Brightness | 400 |
| Display Size | 7 inch | Supplier Type | manufacturer |
| Operating Temperature | -20~70℃ | Screen Size | 7.0 |
| Communication Interface | LVDS | Driver Ic | HX8282-A14+HX8696-A |
| P/N | C070WSB29NH | Pixel Pitch | 0.1506*0.1432 |
| Display Mode | Normally black | PIN | 40 |
| 154.21*85.92 | 164.9*100.0*3.50 | Active Area(mm) | 154.21*85.92 |
| Storage Temperature | -30~80℃ | Viewing Direction | 85° |
| Contrast | TBD | With /Without TP | WITHOUT |
