EA900
Price varies depending on material, logo, quantity and customization requirements.
Introduction

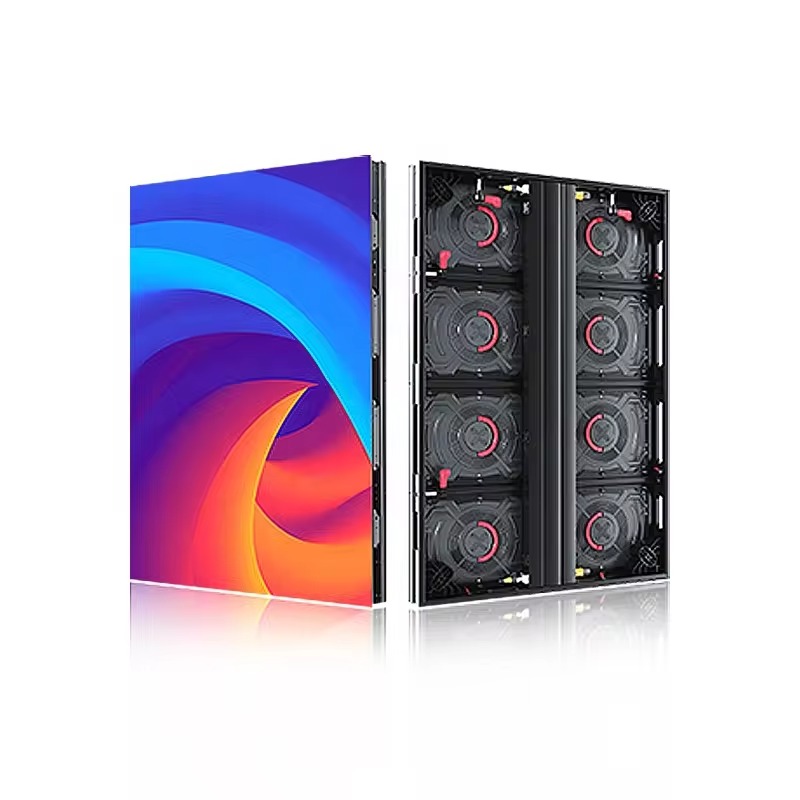

EA900 Energy-saving LED Display

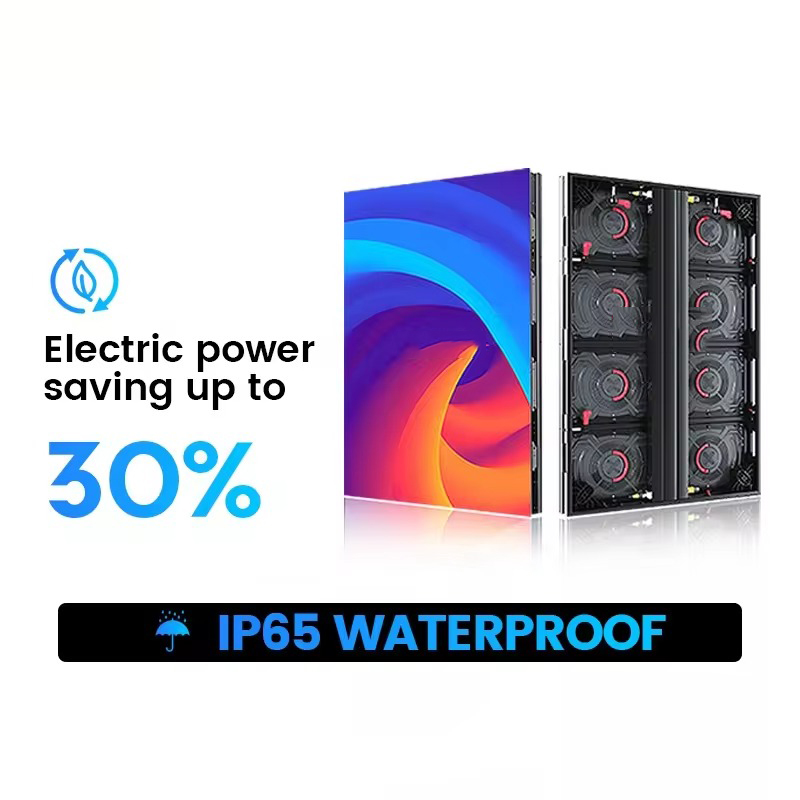

Compared to traditional led display, electric power saving up to 30%
Use updated mask with corrugated and light refraction design, to achieve high contrast ratio.

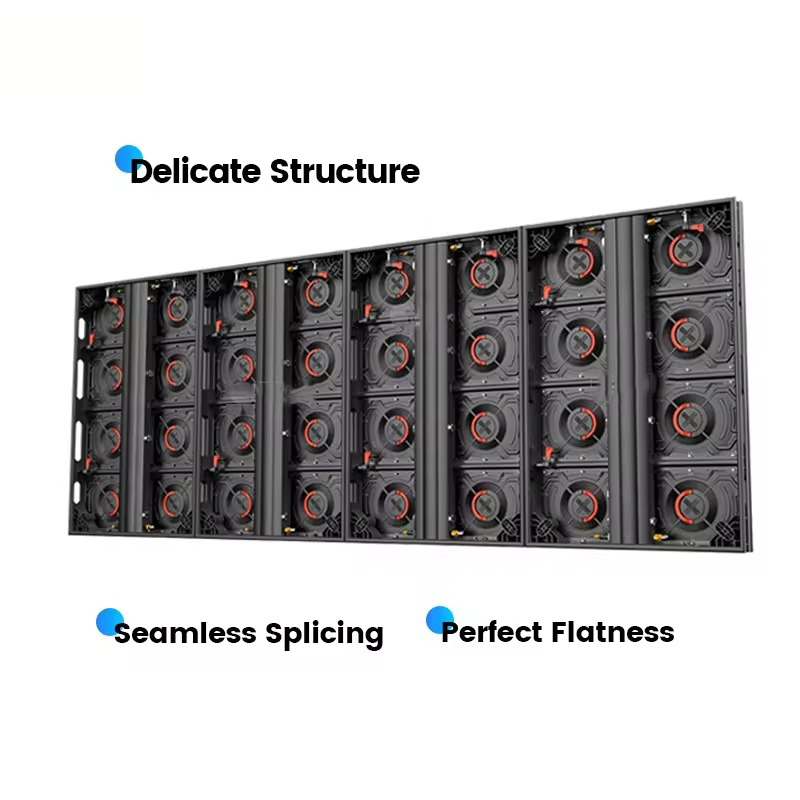

Use aluminium alloy cabinet frame, lighter & thinner, to reduce cost of transportation and labor.
UHB Connection: Hot-swapping technology and modular design support it easier and faster maintenance.

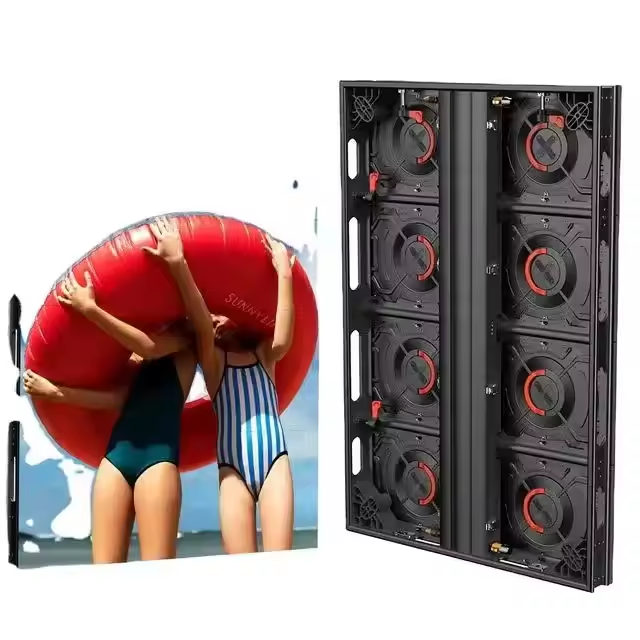

FRONT REVIEW
Updated mask with corrugated and light refraction design, to achieve high contrast ratioREAR REVIEW
Aluminum alloy cabinet frame, lighter & thinner
Reduce cost of transportation and labor
Features
800x900mmH panel size Golden Ritio to make 16:9 LED screen
Full front access and full rear access suitable to any installation environment
Light weight with 17.5kg per panel
Aluminum cabinet
For fixed installation and rental use both(with fast lock and cables connectors)
Panel size :800x900mmH and 800x1200mmH
IP65
IP65 Waterproof for both front and back side

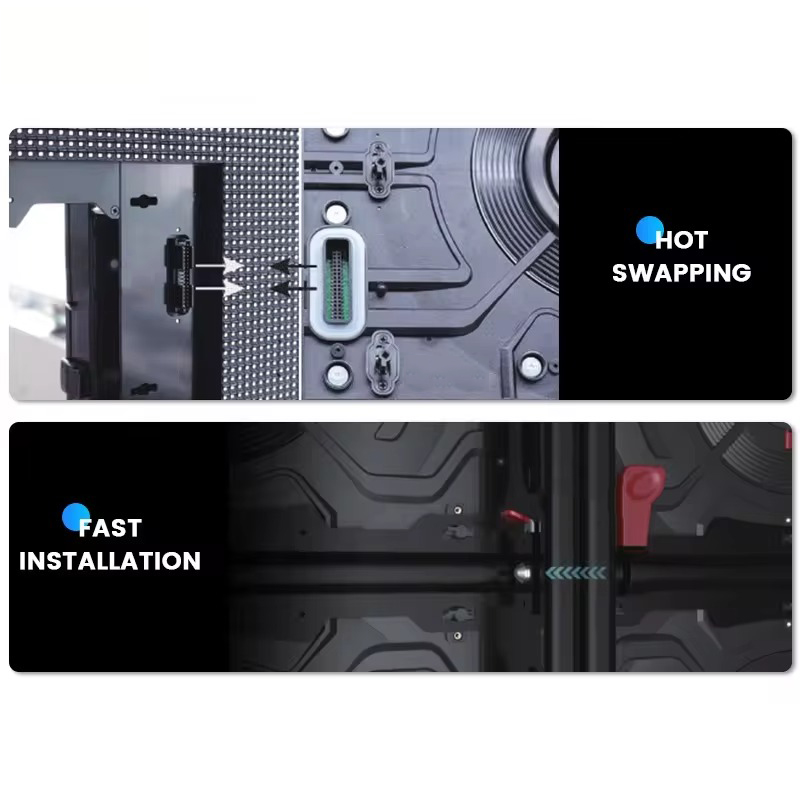

Hot-swapping
Hard connection supports full front access
Fast lock and cables connectors
Make panels available for fixed and rental use both

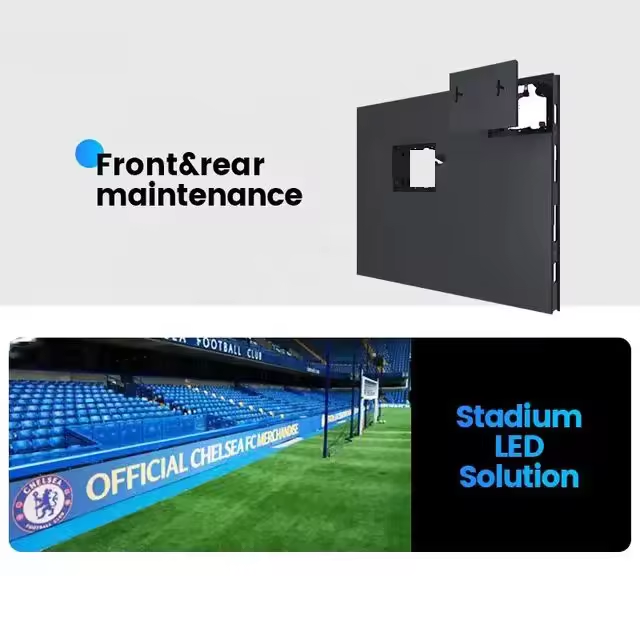

Full front maintenance and full rear maintenance
Meets various outdoor applications
| Model | P4.61 | P5 | P6.25 | P8.33 | P10 |
| LED Type | SMD1921 | SMD2727 | |||
| Physical Density (Dot/sqm) | 57600 | 40000 | 25600 | 14400 | 10000 |
| Module Resolution | 96×72 | 80X60 | 64×48 | 48×36 | 40×30 |
| Module Size (WxH/mm) | 400×300 | ||||
| Panel Dimension (WxHxD/mm) | 800×900 / 800×1200 | ||||
| Panel Resolution | 192×216/ 192×288 | 160×180/ 160×240 | 128×144/ 128×192 | 96×108/ 96×144 | 80×90/ 80×120 |
| Module Qty per Cabinet (WxH) | 2×3 / 2×4 | ||||
| Panel Weight (kg/panel) | 22.4 / 28 | ||||
| Maintenance Mode | Front/Rear Maintenance | ||||
| Cabinet Frame | Aluminum Cabinet | ||||
| Brightness(Nits) | 6500 | ||||
| Color Temperature(K) | 1000-18500 Optional | ||||
| Viewing Angle(H/V) | 160°/160° | ||||
| The Optional Viewing Distance | 4-150m | 6-200m | 6-250m | 9-300m | |
| Display color | 68.7 billion | ||||
| Contrast Ratio | 5000:1 | ||||
| Frame Frequency(Hz) | 50/60 | ||||
| Drive Mode | 1/6 Scan | 1/3 Scan | 1/2 Scan | ||
| Grey Level | 16 bit | ||||
| Refresh Rate | 3840Hz | ||||
| Max Power Consumption (W/sqm) | 780 | ||||
| Avg Power Consumption (W/sqm) | 200-300 | ||||
Outdoor Screen
P4.61
SMD1921 57600 dot/sqm 800×900 / 800×1200 panel sizeP5
SMD1921 40000 dot/sqm 800×900 / 800×1200 panel sizeP6.25
SMD2727 25600 dot/sqm 800×900 / 800×1200 panel sizeP8.33
SMD2727 14400 dot/sqm 800×900 / 800×1200 panel sizeP10
SMD2727 10000 dot/sqm 800×900 / 800×1200 panel sizeWe are a professional manufacturer and supplier, dedicated to maintaining consistent quality and establishing long-term partnerships with clients worldwide.
