EV1000
Price varies depending on material, logo, quantity and customization requirements.
Introduction
EV1000 Outdoor LED Display
EV1000 Series LED Screen is Energy Saving LED Display. it’s the latest Common Cathode Aluminum Display with the size of 500*1000mm and high IP66 waterproof level.
IP66 Waterproof
The high-quality LED module features a fully-sealed design and a die-cast aluminum chassis, providing an IP66 protection rating for both the front and rear, ensuring it is fully waterproof.
Support Front and Rear Service
The dual-service design includes both front and rear maintenance options, making it easy to operate and replace components.
Support 90° Curve
Two Size Available

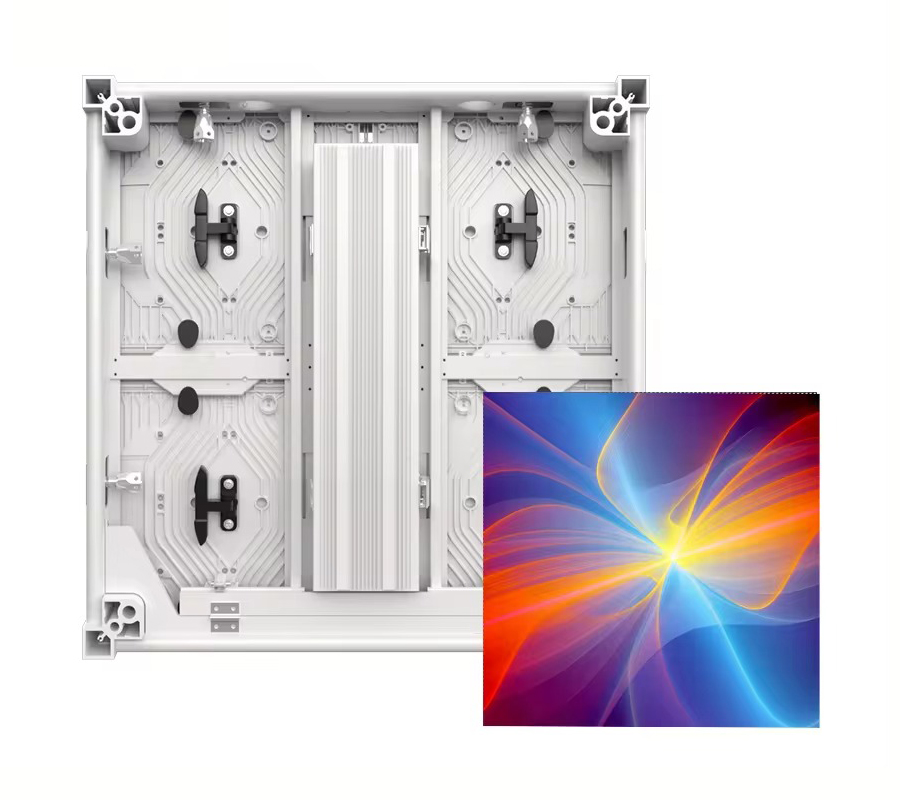

More Sizes with 500*500mm and 500*1000mm available, better to meet customers need
| Pixel pitch | 1.95mm | 2.604mm | 2.97mm | 3.91mm |
| Pixels per cabinet | 192×384 (HxV) | 168×336 (HxV) | 128×256 (HxV) | 104×208 (HxV) |
| LED Type | SMD1516 | SMD1516 | SMD1516 | SMD1921 |
| Scan Way | 32S | 24S | 21S | 8S |
| Brightness | ≥4500 nits; | ≥4500 nits; | ≥4500 nits; | ≥6000 nits; |
| Module size | 250*250*18mm | |||
| Module resolution | 128*128dots | 96*96dots | 84*84dots | 64*64dots |
| Cabinet resolution /㎡ | 512*512=262144dots | 384*384=147456dots | 336*336=112896dots | 256*256=65536dots |
| Refresh rate | 3840Hz | |||
| Hor. viewing angle | 140° +/-5° (@50% brightness) | |||
| Vert. viewing angle | 120° +/-5° (@50% brightness) | |||
| Grey Level | 65536 | |||
| Avg Power consumption | 235 W/m² | 235 W/m² | 235 W/m² | 235 W/m² |
| Max Power consumption | 600 W/m² | 600 W/m² | 600 W/m² | 650 W/m² |
| IP rating | IP66 | |||

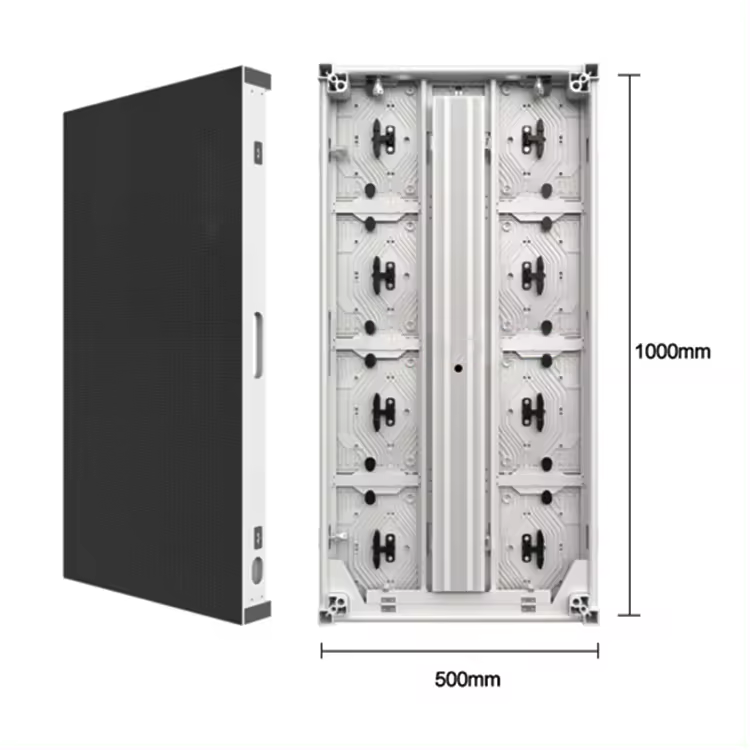

| Cabinet | 500 x 1000 x 83 mm (16KG),500 x 750x 83 mm (12KG), 500 x 500 x 83 mm (8KG) | |||
| Cabinet Material | Aluminum | |||
| Service Way | Front and Rear | |||
Rental Screen
P1.95
250*250mm Panel500*1000mm Cabinet 128*128 dots/moduleP2.6
250*250mm Panel500*1000mm Cabinet 96*96 dots/moduleP2.9
250*250mm Panel500*1000mm Cabinet 84*84 dots/moduleP3.9
250*250mm Panel500*1000mm Cabinet 64*64 dots/moduleWe are a professional manufacturer and supplier, dedicated to maintaining consistent quality and establishing long-term partnerships with clients worldwide.
