HM480
Price varies depending on material, logo, quantity and customization requirements.
Introduction

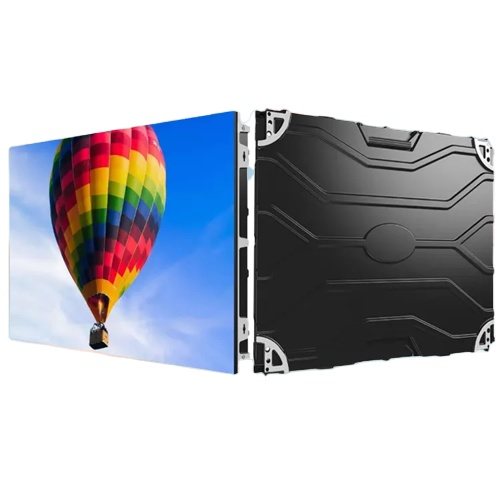

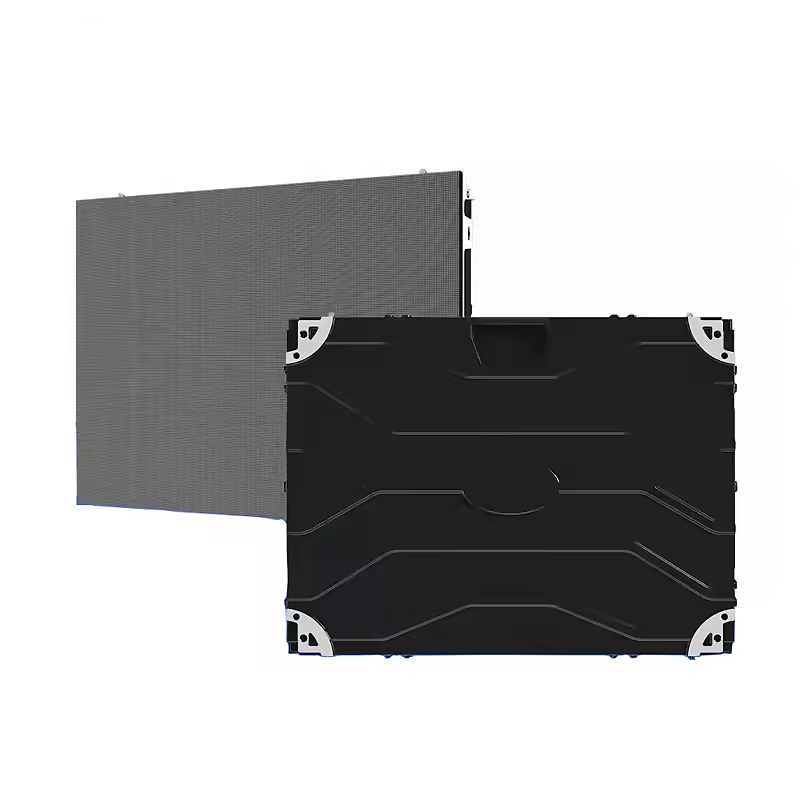

HM480 Series Indoor LED Video Wall

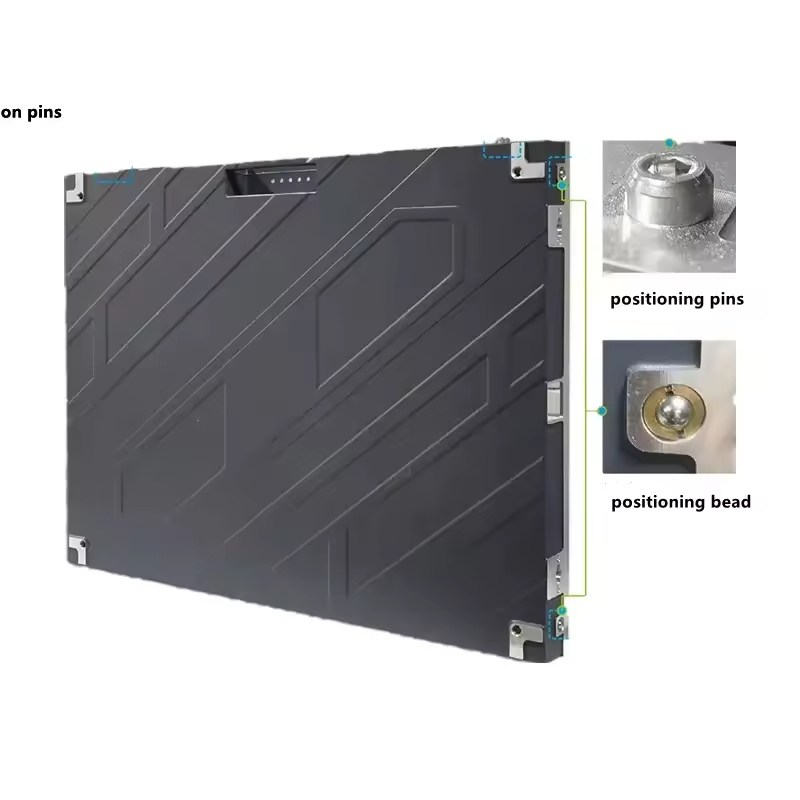

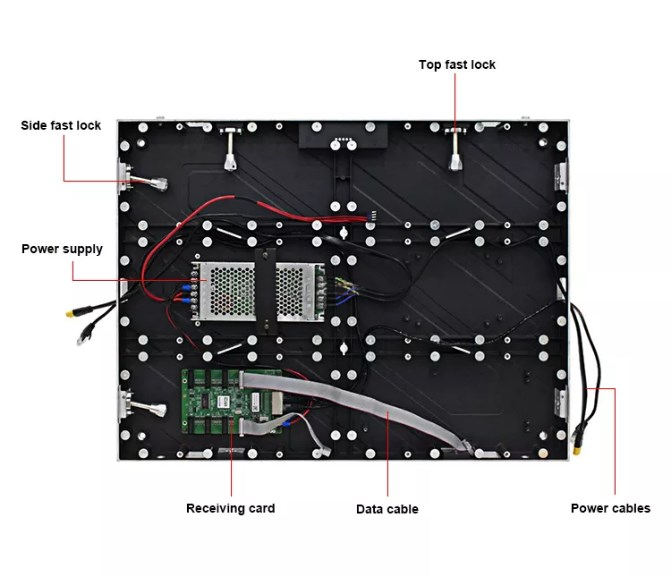

Perfect Structure
The HM480 Series indoor led screen adopts precision craftsmanship and advanced technology.
The structural design has been rigorously tested and verified, has excellent stability and reliability

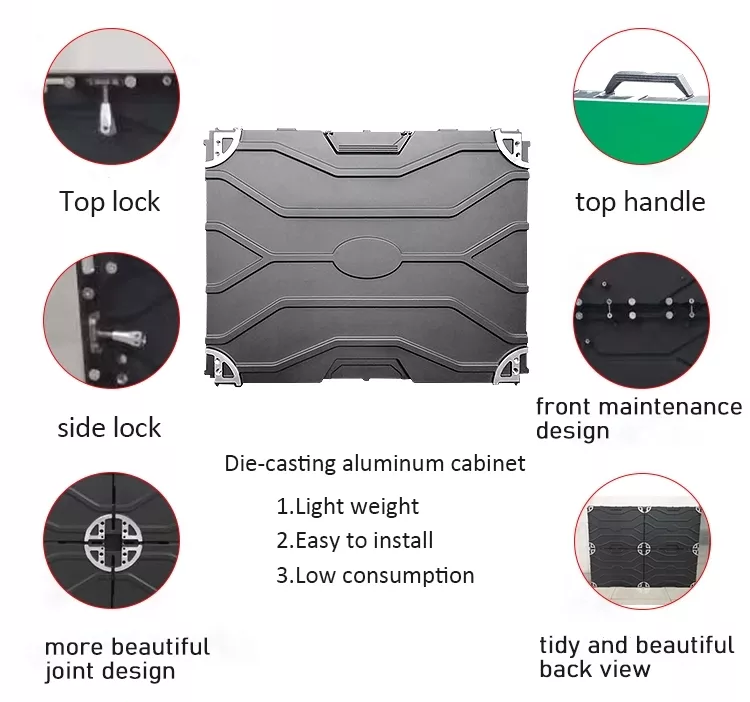

Die-casting aluminum cabinet
1.Light weight 2.Easy to install 3.Low consumption

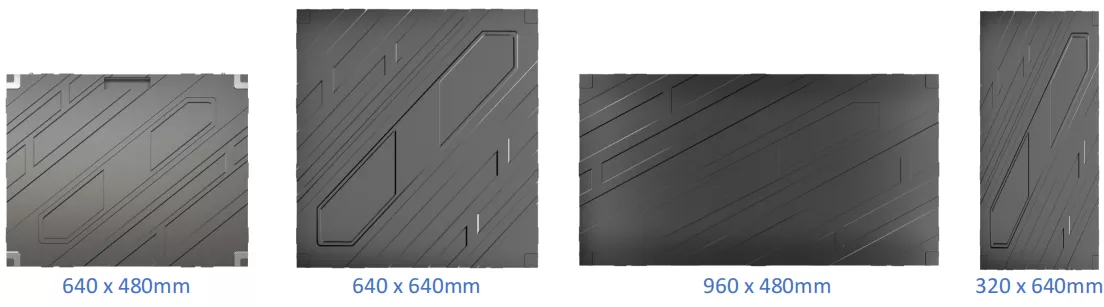

Four size to choose
Seamless splicing
High refresh rate and high contrast
Dynamic display, stable picture, no ripple

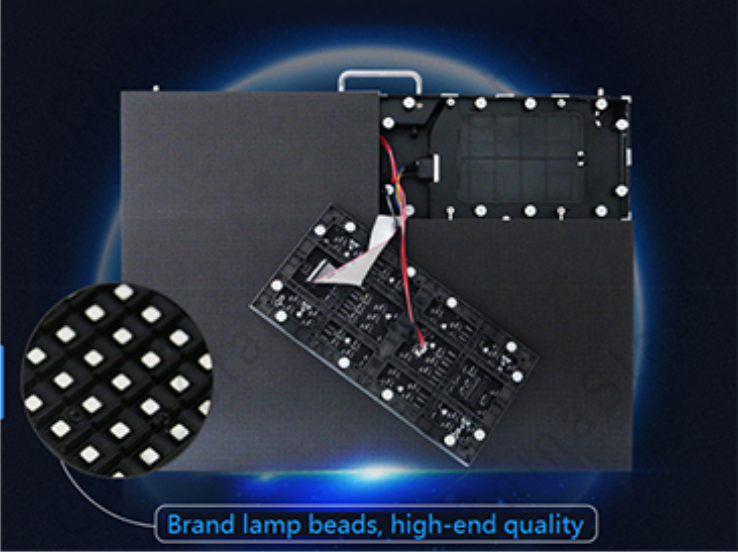

Front maintenance design, convenient and fast
Large viewing angel
160° ultra-wide viewing angle, no blind spots and color deviation, 4k high-definition image quality
Smooth Grayscale
Reduces the color jumps and breaks in the image, making the color transition in the image more natural, and presenting a more realistic and vivid picture
Not Have ghosting and tailing
| Model NO | p1.379 | p1.538 p1.667 | p1.839 | p1.88 | p2 | |
| Pixel Pitch | 1 .379mm | 1 .538mm | 1, 667mm | 1. .839mm | 1 .88mm | 2mm |
| Pixel Configuration | SMD1010 | SMD1212 | SMD1212 | SMD1515 | SMD1515 | SMD1515 |
| Modu ile Resolution | 232*11 6dots 208*104dots 192*96dots | 174*87dots | 170*85dots | 1 60*80dots | ||
| Modue Size | 320*1 60mm | |||||
| Cabinet Size | 640*480mm | |||||
| Pixel Density | 525625dots/ | 422500dots/㎡；360000dots/㎡； 295664dots/㎡； 282227dots/㎡； 250000dots/㎡ | ||||
| Cabinet Material Die cast aluminu m | ||||||
| Power Consumption(/ | 150W/m2 ,500W/mz | |||||
| Brightness | ≥1000cd/㎡ | ≥1000cd/㎡ | ≥1000cd/㎡ | ≥1000cd/㎡ | ≥1000cd/㎡ | ≥1200cd/㎡ |
| Drive Mode | 1/58scan | 1/52scan | 1/64 scan | 1/58scan | 1/57scan | 1/40scan |
| View Angle(H/N ) | 160/160 | |||||
| Best Viewing Distance 1.7-5m | 1.9-5m | 2-5.6m | 2.3-6m | 2.4-6.3m | 2.5-6.7m | |
| Fresh rate | 2 3840HZ | |||||
| Gray scale | 256(14-16bit) | |||||
| lnput Voltage | AC220V/50Hz or AC110V/60Hz | |||||
| Defects Rate | s000001 | |||||
| MTBF | >10,000 hours | |||||
| Life span | 2100,000 hours | |||||
| Protective Grade | IP40 | |||||
| Temperature-operating | -20C~ +60C | |||||
| Humidity-operating | 10%~95% | |||||
Indoor Product
P1.379
640*480mm Cabinet 320*160mm Module 525625dots/㎡P1.538
640*480mm Cabinet 320*160mm Module 422500dots/㎡P1.667
640*480mm Cabinet 320*160mm Module 360000dots/㎡P1.839
640*480mm Cabinet 320*160mm Module 295664dots/㎡P1.88
640*480mm Cabinet 320*160mm Module 282227dots/㎡P2
640*480mm Cabinet 320*160mm Module 250000dots/㎡We are a professional manufacturer and supplier, dedicated to maintaining consistent quality and establishing long-term partnerships with clients worldwide.
