LM4.81
Price varies depending on material, logo, quantity and customization requirements.
Introduction

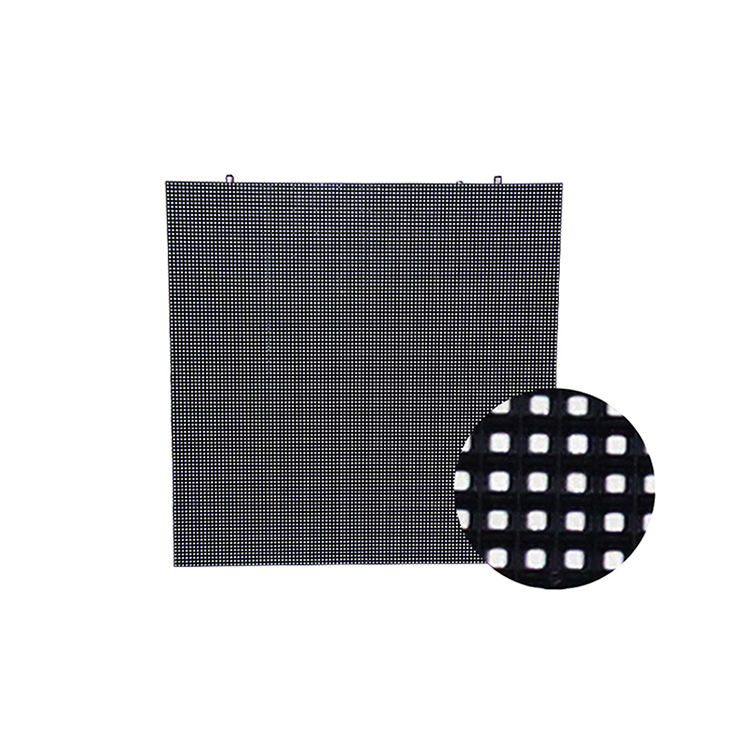

LM4.81 Outdoor LED Display Module
250mmx250mm P4.81mm Outdoor led display module
High Brightness and high Resolution W52XH52dots outdoor SMD LED screen panel
high waterproof IP65 protection grade outdoor full Color LED sign module.
Feature
Resolution:52*52=2704dots

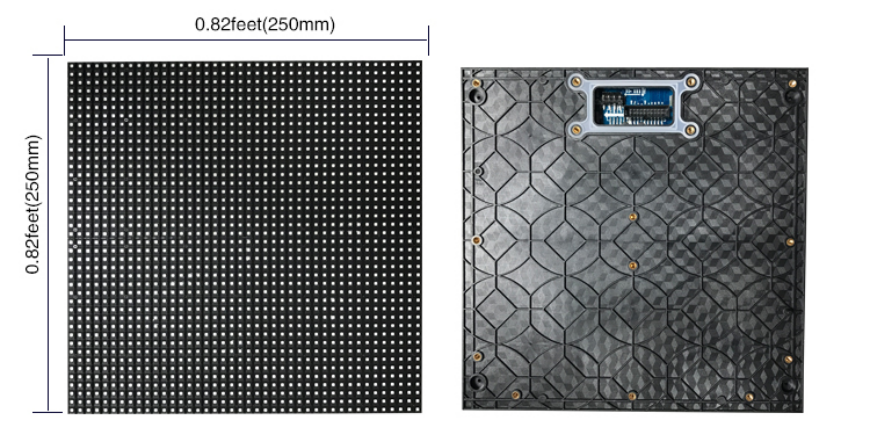

LED Module Size: 250mmx250mmx17.5mm , LED Module With 1.6cm PCB.
LED Module Brightness: ≥ 5000 CD/m2(Nits)

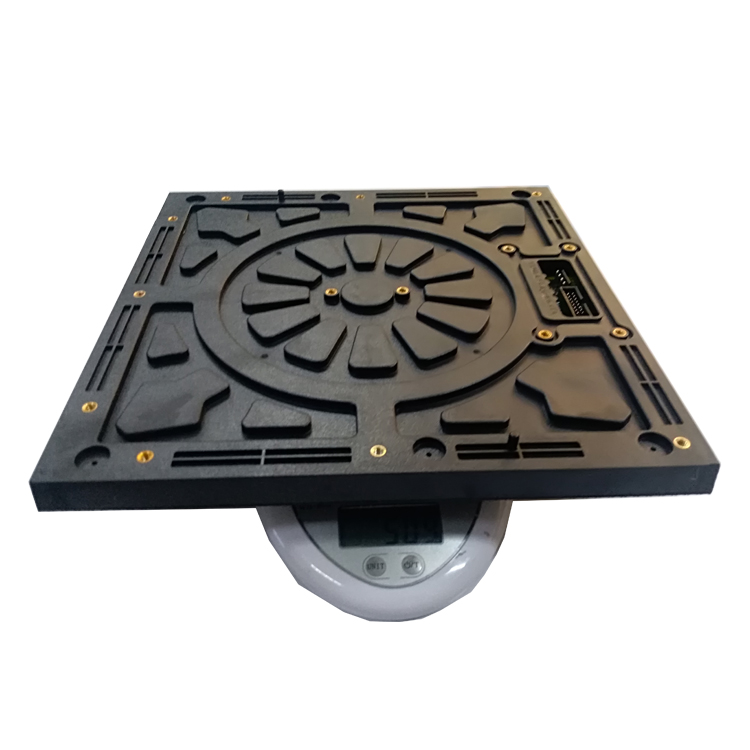

Module Weight: 0.5KG, Module Thickness about 11mm

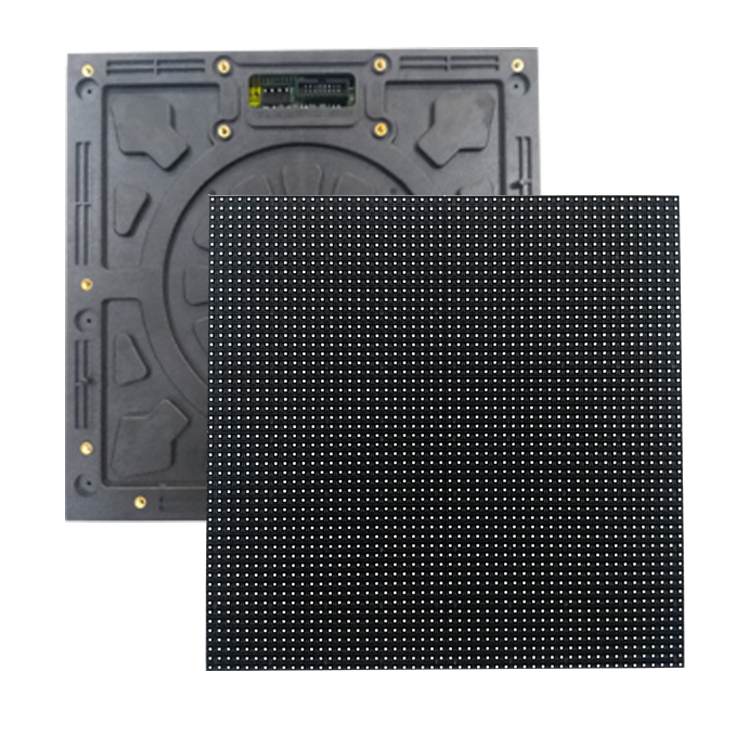

SMD 4.81MM outdoor LED sign module have the high reliability and contrast,wide view angle and good consistency.
This LED module could meet the need of high brightness,high refresh rate,high gray scale and keep natural color at one time with best color uniformity.
LED Display Module Aging & Testing
The aging test of the LED module refers to running the LED module for a long time to simulate actual use conditions to detect its performance and stability.
Typically, LED modules are run continuously for hours or days, or even longer. So that to ensure that the performance and brightness of the LEDs do not degrade after prolonged use.
During the aging test, we monitor the brightness, color fidelity, uniformity, and other parameters of the LED, evaluating the quality and reliability of the LED module based on the test results.
The aging of LED display is divided into white balance aging (2×24 hours) and video aging (24 hours). Totally 72 hours before packing.
Aging test process of led display screen:
1) Check the led display module to install all correct.
2) whether there is a short circuit or not.
3) Check whether the module is flat and neat.
4) Check whether the appearance is intact or not.
5) Use the online led control system to light up.
After the aging test,, we conduct parameter inspections in the quality control group, including white balance, red, green, blue, grayscale gradient, video effects and text effects, etc. After 72 hours of aging testing, we will promptly report any problems and contact the engineering department, then to replace or repair the damaged LEDs. Before packaging, we ensure that all components can operate stably to ensure product quality and reliability.
| Item: | Technical Parameter |
| Model: | PH4.8mm outdoor LED module |
| Pixel Pitch: | 4.81mm |
| Pixel configuration: | 3in1 (1R1G1B) |
| Module Size: | 250*250mm |
| Module Resolution: | W52XH52dots |
| Module Thickness: | 11mm |
| Module Weight: | 0.5KG |
| Package LED mode: | SMD2727 |
| Max Power: | 20W |
| Pixel Density: | 42849 dots/SQM |
| Driving Method: | Constant Current Driving |
| Scan Method: | 1/13 scan |

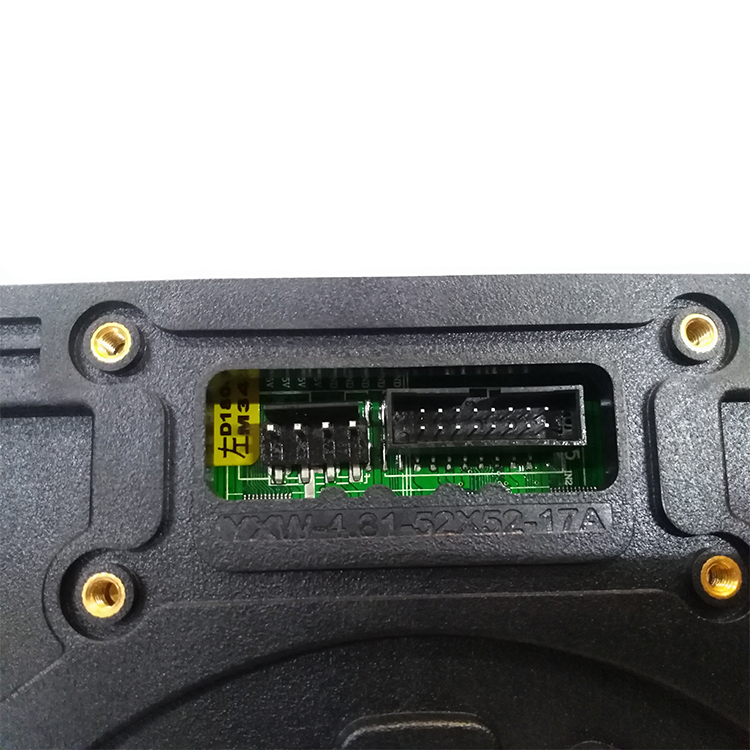

| Interface Way: | HUB 75 |
| Brightness: | ≥ 5000CD/SQM |
