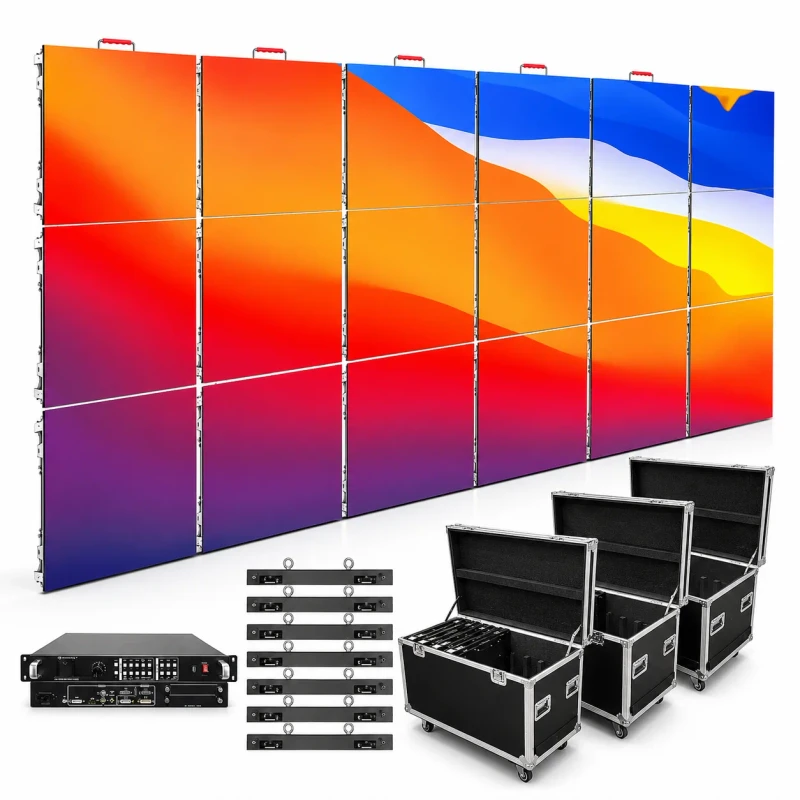

Outdoor LED Display Panel P3.91 Billboard Screen Pantallas LED Exterior LED Video Wall
Resolution & Pixel Pitch: Various pixel pitches available (e.g., P1.25, P2.5, P4) to ensure high-definition displays for different a
Size & Shape: Customizable screen sizes and shapes, including standard rectangular, curved, and irregul
Brightness & Protection Level: Adjustable brightness (1000 to 5000 nits) and protection levels (e.g., IP65 waterproof) tailored for indoor or outdoor u
Control System & Features: Customizable control systems with options for multiple playback modes, interactive touch functionality, a
Introduction
| specification | Digital Poster, Video Wall, Kiosk | Usage environment | Outdoor |
| Pixel Pitch | P3.91, P4, P5, P6, P8 | brightness | 800 cd, 1000cd, 4000 cd, 4500 cd, 5000 cd |
| ip rating | IP65 | Product Dimensions | 500*500mm(19.69*19.69in) |
| resolution | 128X128 | Content Management System | Cloud-Based CMS |
| Remote Device Management | Remote Content Management | Touch Screen | Without Touch Screen |
| Control Method | App-Controlled, Computer-Controlled | aspect ratio | 16:9, 4:3, 21:9, Other |
| Operating Temperature | -30°C-60°C | Contrast Ratio | 5000:1 |
| Color Depth | 8-Bit, 10-Bit, 12-Bit | Mounting type | Custom Mount, Floor Stand, Ceiling Mount, Wall Mou |
| Display Coating | Outdoor Viewable Coating | Voltage | 100V-240V |
| Material | Die Casting Aluminum | Operation System | Linux, Android, Windows, WEBOS, Other |
| function | SDK, Customized | Display Function | Graphics, Animation, Text |
| Screen Type | Other | Size | 500mm*500mm(19.69in*19.69in) |
| application | Outdoor | view angle（h/v） | 160° |
| media available | Photo, Other, EDA/CAD Models, Datasheet | supplier type | ODM, OEM, Other |
| color | full colour | lifespan (hours) | 100000 |

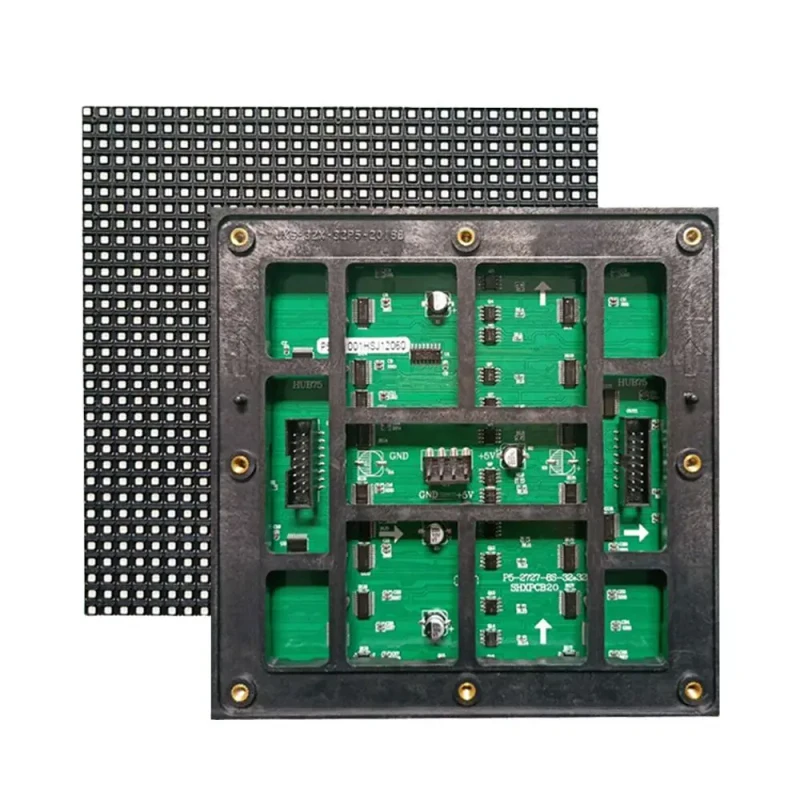

| Product name | outdoor led display panel | Module size | 250*250mm |
| Weight | 7Kg/13Kg | Average power consumption | 200-300w |
| LED package | SMD2121 | Refresh rate | ≥3840Hz |
| Scan | 1/16 | Cabinet material | Die Casting Alunimum |
| Viewing Distance | 3.91-39.1 meters | Pixels | 3.91 mm |
